Advancing Metrology at Mach Pace: Drone Mounted Inspection Breaks Limitations for F-35

The F-35 Lightning II is an all-weather stealth fight plane that’s meant to carry out warfare strike missions and digital surveillance capabilities at speeds as much as 1.6 Mach.

Composites comprise 35% of the airframe weight, with the bulk being bismaleimide, in addition to some carbon nanotube-reinforced epoxy, which has a tensile power of roughly 100 occasions larger than metal.

Any deviations in exterior dimensions can intervene with stealth capabilities, and at supersonic speeds, show catastrophic to each aircraft and pilot.

Due to this fact, it’s important that the “as constructed” metrology is confirmed as “close to good” to the design. Presently, inspection is finished by hand at Lockheed Martin’s manufacturing facility in Fort Value, Texas.

Gantries are assembled above the craft and staff use handheld scanners prolonged at arm’s size. This guide course of introduces variables and likewise places staff in danger as they try to straddle the sleek contoured surfaces of the plane.

In an try to generate sooner outcomes, whereas growing accuracy and security for all concerned, manufacturing unit employee, buyer and consumer, the transition to digital inspection is required.

“There must be a daring first adopter of aerial digital inspection within the {industry} and Lockheed Martin hopes to satisfy that function with this use case,” mentioned Chris Colaw, Lockheed Fellow, High quality & Mission Success. “That is necessary within the high quality house as a result of it helps us peel away the reliance on a lot human involvement.”

Any deviations in external dimensions of the U.S. Air Force version of the F-35 Lightning II can interfere with stealth capabilities, and at supersonic speeds, prove catastrophic to both plane and pilot.Any deviations in exterior dimensions of the U.S. Air Drive model of the F-35 Lightning II can intervene with stealth capabilities, and at supersonic speeds, show catastrophic to each aircraft and pilot.CAD/CAM Companies

Measuring lightning

Many units at the moment enable for digital measurement of assemblies on a small stage. Nevertheless, the issue is how you can scale up current industrial tools to examine giant, fully constructed initiatives, resembling a large-body plane, ships and even submarines, whereas nonetheless holding to tight tolerances.

“For 100 years in aviation we’ve been utilizing people for high quality assurance, however roughly 75% of my prices come from inspection and 66% of that requires people to carry out, which includes a point of subjectivity,” Colaw mentioned. “However in our digital future, we have to embrace issues differently.”

Lockheed Martin sought to seek out an automatic metrology answer to substantiate and doc measurements to the tightest tolerances in a sooner, extra correct and extra repeatable course of.

“We have been doing our personal analysis on what a digital future would appear to be, however we opted to work with CAD/CAM since they offered a possibility to associate with a scanner firm and the College of Texas on drone management,” Colaw mentioned. “That saved us from having to do all of the work on our personal. The collaboration was a pure match.”

Within the spring of 2021, CAD/CAM Companies received a Small Enterprise Expertise Switch Analysis (STTR) award to resolve floor metrology points for the F-35 fighter jet.

Its job was to assemble a staff of industry-leading suppliers that will ship to Lockheed Martin a drone-mounted scanner that may precisely (± 0.025mm) measure giant assemblies and transmit that information to a system that finally creates CAD recordsdata for first article inspection or upkeep functions.

The corporate, based mostly in Texas, has offered 3D modeling and CAD conversion companies worldwide since 1988. Its prospects embody Boeing, Litton-Ingalls Shipbuilding, the U.S. Navy and Air Drive.

“We’re taking numerous industrial, off-the-shelf elements, barely modifying them, and tying all of it collectively to create a brand new system to resolve an issue that’s wanted by {industry},” mentioned Scott Shuppert, CEO of CAD / CAM Companies.

CAD/CAM Services won a Small Business Technology Transfer Research (STTR) award to solve surface metrology and delamination issues for the F-35 fighter jet.CAD/CAM Companies received a Small Enterprise Expertise Switch Analysis (STTR) award to resolve floor metrology and delamination points for the F-35 fighter jet.CAD/CAM Companies

Integrating the weather

The synergistic outcome began with the drone and the digicam inspection software program, which needed to actively seek for points resembling: dents, cracks, deformations, corrosion and alignment points after which reconcile the measured outcomes to the design mannequin.

“Our staff determined we would have liked to have each a drone and a robotic to examine on the meeting line,” Shuppert mentioned. “The drones will fly above and across the craft, whereas the wheel-mounted robotic will work beneath the aircraft. For the drones, we went with Airgility as a result of that they had most of what we have been on the lookout for.”

Based mostly in School Park, MD, Airgility, Inc. focuses on integrating AI and autonomy into their unmanned aerial automobiles (UAV). Their drones met the necessities for maneuverability (repeatedly adjustable tilt motors), management accuracy (skill to carry a flight path to ± 6mm), compliance (NDAA and TAA) and carrying capability.

The steerage and management (G&C) system makes use of a multi-loop structure that computes the error between a desired reference place and the present drone place after which synthesizes the specified 3-axis actions of the rotors at an 80 Hz sampling fee. This permits the drone to function with out the advantage of world positioning satellites.

“Since GPS alerts can’t penetrate a closely constructed plane hangar, the drone has to depend on the inner G&C system,” mentioned Pramod Raheja, CEO and co-founder of Airgility. “This method regulates the angular orientation of the drone through an unbiased thrust vectoring system so it may possibly observe a 3-D reference trajectory based mostly on the bodily dimensions of the plane.”

Lockheed Martin will be the first adopter of aerial digital inspection in the aerospace industry with the utilization of drones to inspect the F-35.Lockheed Martin would be the first adopter of aerial digital inspection within the aerospace {industry} with the utilization of drones to examine the F-35.CAD/CAM Companies

Raheja defined how situational consciousness is achieved by an algorithm that comes with information from quite a few, redundant sensors. This permits the craft to fly in slim areas, like over and underneath a gantry or plane wing.

Additionally included within the intelligence is a self-contained on-board AI failsafe mechanism, so if the software program crashes for any cause, the drone will merely again away, keep away from any obstacles and land itself.

Collision avoidance is extraordinarily necessary, since along with the plane itself, the Lockheed Martin manufacturing unit ground presents quite a few bodily obstacles together with scaffolding, pilot ladders, auxiliary energy models, tails, canopies and folks.

“Earlier than we let a drone fly subsequent to an $80 million jet, we needed to check it inside a lab surroundings,” mentioned Lockheed Martin’s Colaw.

That is the place Animesh Chakravarthy, Ph.D., Professor of Mechanical and Aerospace Engineering and Flight Management on the College of Texas at Arlington, was introduced in. Chakravarthy’s analysis in collision avoidance has been acknowledged by his receiving a prestigious CAREER award from the Nationwide Science Basis (NSF).

“The aim is to have the drone performing a number of exact orbits across the plane, at simply the best velocity, whereas on the identical time guaranteeing that the scanner is correctly oriented in direction of the plane,” Chakravarthy mentioned. “The trick is just not getting so shut as to trigger a collision, however not so distant as to distort the readings.”

Chakravarthy’s superior college students will develop the mechanical robotic that carries the scanner underneath the aircraft alongside the plant ground. It is going to be outfitted with its personal G&C system (conceptually just like that of the drone) that may autonomously observe the reference trajectory whereas guaranteeing collision avoidance.

“Typically drone know-how will get quite a lot of consideration as a result of it’s neat and intriguing, however there must be a enterprise worth behind it,” Colaw mentioned. “Utilizing drones and the sort of scanning know-how actually opens the door to raised perceive our product and to cost-effectively substantiate the standard of our merchandise in a approach that we will’t at the moment do as a result of we’re restricted by human bandwidth.”

The manual inspection process of the F-35 introduces variables and also puts workers at risk as they attempt to straddle the smooth contoured surfaces of the aircraft.The guide inspection strategy of the F-35 introduces variables and likewise places staff in danger as they try to straddle the sleek contoured surfaces of the plane.CAD/CAM Companies

Increasing the potential of drone-integrated metrology

The present STTR award consists of choices for even additional developments. Of nice significance to Lockheed Martin is figuring out any delamination throughout the composite pores and skin of the F-35.

Since separation of the layers and voids can’t at all times be seen or measured from the floor, a non-destructive testing methodology is important.

That is the place extremely delicate IR cameras can be utilized to examine beneath the composite floor of the craft to successfully visualize and determine any anomalies.

“The IR flash lamps act as an excitation supply to switch warmth via the fabric,” mentioned Desmond Lamont, International Enterprise Improvement Supervisor for Teledyne FLIR. “Since voids and gaps don’t switch warmth as effectively as a strong does, the warmth will construct and the digicam identifies these scorching spots and factors out the adjoining fault areas.”

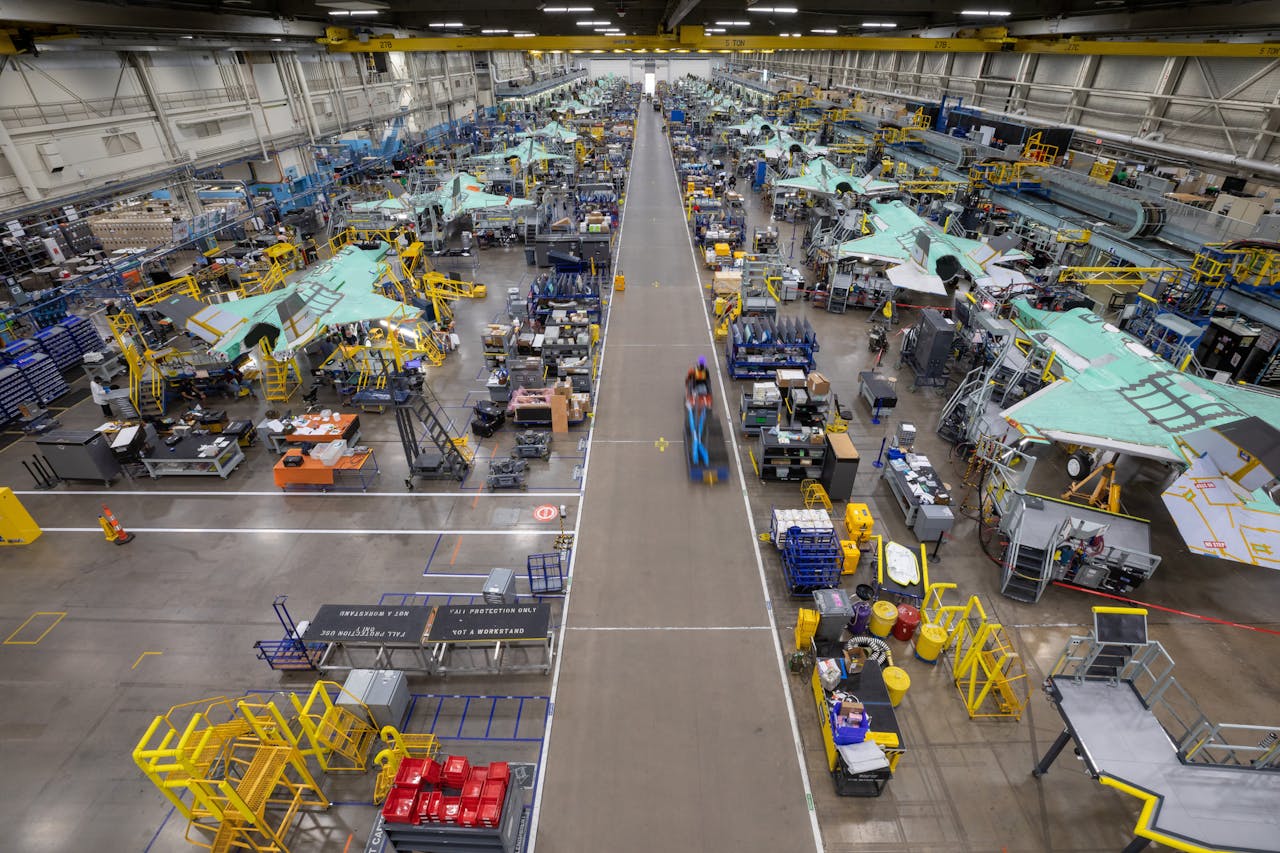

Metrology and delamination inspection is currently done by hand here at Lockheed Martin’s production facility in Fort Worth, Texas.Metrology and delamination inspection is at the moment performed by hand right here at Lockheed Martin’s manufacturing facility in Fort Value, Texas.CAD/CAM Companies

Chopping the wire

Whereas there have been plenty of challenges the staff encountered, the difficulty of eradicating the wiring tether from the scanner was thought-about one of the crucial vital. A wi-fi method is far safer and extra able to dodging personnel and bodily infrastructure on the manufacturing unit ground.

The Airgility staff will clear up this drawback by using AI drones that solely transmit essential information, thus drastically lowering bandwidth.

“Because the clever drone is aware of what anomalies to search for, it solely sends that information and ignores the anticipated outcomes,” Raheja mentioned. “Due to this fact, you don’t must transmit quite a lot of information repeatedly.”

The last word results of this collaboration is a dependable, extremely correct (plus or minus 0.025mm) inspection platform for giant physique craft that removes human error and security threat from the manufacturing surroundings.

“With the F-35 there actually is a use case to make use of this know-how the place it has a profitable likelihood of entry,” Colaw mentioned. “The concept is to scale it throughout the opposite Lockheed Martin enterprise models after which turn out to be a serious proponent for utilizing this know-how in different relevant industries.

Dr. David Rizzo is a Phoenix-based freelance author with greater than 30 years of expertise writing for the design engineering, aerospace and manufacturing sectors.
